YubiKey & Smartcard

Store your subkeys on hardware for enhanced security.

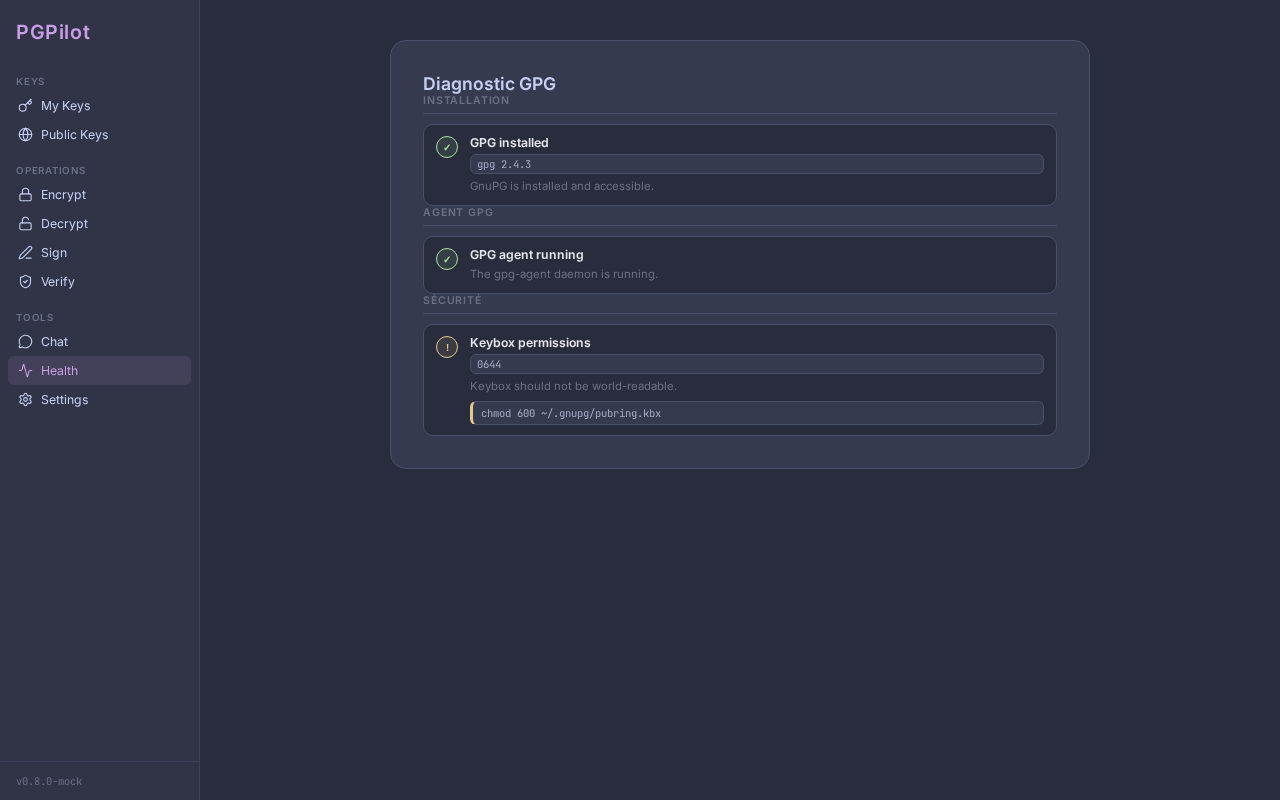

Health check view — Catppuccin theme

Why use a hardware key?

A hardware security key (e.g., YubiKey) keeps your private keys isolated from your computer:

Private keys never leave the hardware
Compromised computer ≠ compromised keys
Requires physical key present to sign/decrypt
You still use gpg — pgpilot is your GUI

Trade-off: Slower (requires physical interaction); more secure.

Supported Hardware

pgpilot supports OpenPGP-compatible smartcards via gpg:

YubiKey 5 / 5C / 5 Nano (most popular)
YubiKey 4 (older, still supported)
Nitrokey (open-source alternative)
Gemalto IDBridge (enterprise)
Any OpenPGP Card 3.x compatible device

Requirements

Hardware key plugged in (USB-A, USB-C, or NFC depending on model)
GnuPG ≥ 2.2 (with smart card support)
scdaemon running (usually automatic; see Troubleshooting)

Checking Card Status

pgpilot auto-detects connected hardware:

Select a key in My Keys
In the detail panel, look for:
- Card badge: Shows card serial number if a key is migrated to this card
- Card icon: Appears next to key if stored on hardware

If no card is detected:

Check that the key is plugged in
See Troubleshooting for scdaemon issues

Migrating a Subkey to Hardware

Move an individual subkey to the card (e.g., move only the Encryption subkey).

Before you start

Back up your key: Click Backup first (see Key Management)
- If migration fails, you can restore from backup

Initialize the card (first-time only):

gpg --card-edit
admin
passwd  # set admin PIN (default: 12345678)
quit

Migrate in pgpilot

Select your key
Click Migrate to YubiKey
A modal asks: “Which subkey?”
- Choose Sign, Encrypt, or Auth
Confirm: “This action cannot be undone”
pgpilot calls gpg --edit-key --command-fd 0 --status-fd 2 <fp>:
- Sends key N (select subkey)
- Sends keytocard
- Prompts for card admin PIN (default: 12345678)
After successful migration:
- Card icon appears in the key detail
- Subkey now lives on the card
- Private key removed from your computer

What happens to the original key?

After migration, your computer has:

Secret key stub — pointer to the card (gpg recognizes which card)
Public key — unchanged, still in ~/.gnupg/pubring.gpg

When you sign/decrypt, gpg sends commands to the card via USB.

Using a Card-Based Key

Once a subkey is on the card, signing and decryption work the same in pgpilot:

Signing: Click Sign, choose signer key, enter PIN (via pinentry)
Decryption: Click Decrypt, decryption happens on card, enter PIN
Publishing: Publish still works (sends stub + public key to keyserver)

From pgpilot’s perspective, it’s transparent — you don’t need to know if a key is on card or on disk.

Difference you’ll notice: Operations require physical presence (key must be plugged in) and PIN entry.

SSH Authentication with Auth Subkey

If you created your key with SSH Auth subkey enabled, you can use it for SSH:

Setup (one-time)

Export your public key in SSH format (currently requires command-line):
Terminal window
```
gpg --export-ssh-key <fingerprint> > ~/.ssh/id_pgp.pub
```

Add to authorized_keys on your servers:

cat ~/.ssh/id_pgp.pub >> ~/.ssh/authorized_keys  # on remote server

Configure SSH to use the GPG key:

export SSH_AUTH_SOCK="/run/user/$(id -u)/gnupg/S.gpg-agent.ssh"
ssh -i ~/.ssh/id_pgp.pub username@server.com

Usage

SSH now uses your GPG key instead of separate SSH keys
If Auth subkey is on a YubiKey, SSH also requires the card + PIN
Centralize key management: one master key, subkeys for different purposes

Note: This requires gpg-agent SSH socket, not pgpilot UI. pgpilot may add SSH key export in a future release.

Rotating a Card-Based Subkey

If a card-based subkey is compromised or expired:

Rotate as normal: Select key, click subkey Replace
pgpilot creates a new subkey on disk
Old subkey on card is revoked
You can now:
- Keep the new subkey on disk, or
- Migrate it to card (see “Migrating a Subkey to Hardware” above)

Multiple Keys / Multiple Cards

You can have multiple hardware keys:

Plug in a different card
In pgpilot, select a different key
Migrate different subkeys to different cards
Cards are identified by serial number (shown in detail panel)

pgpilot keeps track of which card holds which key.

Resetting a Card

To erase and reuse a card:

gpg --card-edit
admin
factoryreset  # WARNING: erases all keys on card
quit

Then reinitialize:

gpg --card-edit
admin
passwd
quit

⚠️ WARNING: factoryreset is irreversible. Ensure you have backups before doing this.

Troubleshooting

“Card not detected”

Plug in the key (USB-A, USB-C, or NFC)
Check: gpg --card-status
If error, see Troubleshooting — scdaemon section

“Migration failed”

Wrong admin PIN entered (default: 12345678)
Card full (max 3 subkeys per OpenPGP Card 3.x)
Card not detected mid-operation

If migration partially fails, restore from backup:

gpg --import <backup-secret.asc>

“Sign/decrypt hangs on card”

Card unplugged
Card unresponsive (try unplugging and re-plugging)
See Troubleshooting — pinentry/scdaemon issues

“Two keys on same card”

OpenPGP Card 3.x holds 3 subkeys max: Signature, Encryption, Authentication
You cannot put two master keys’ subkeys on one card
Use separate cards for separate identities

Best practices

Back up before migration
- Always export secret key backup (see Key Management)
- Keep backups offline (USB in a safe)
Use strong card PIN
- Default: 12345678 (extremely weak)
- Change immediately: gpg --card-edit → admin → passwd
- Recommended: 8+ mixed characters
Keep card with you
- Can’t sign/decrypt without it
- Misplaced card = need to rotate and revoke old keys
Test recovery
- Periodically restore from backup and verify it works
- Don’t discover backup corruption during an emergency
Document your setup
- Note which card holds which key’s subkeys
- Store card serial numbers with your backups

Next steps

Learn about encryption & signing — see File Operations
Publish keys with migrated subkeys — see Keyserver & Sharing
Diagnose issues — see Troubleshooting
